Corona Ring for 330kV Line

Inquire Now Next Product

Product Description

Product Description

1)	CatalogNo.	Dimensions (mm)								Weight(Kg)	Material
	CatalogNo.	L	L₁	h₁	h₂	a	C	∅	∅₁	Weight(Kg)	Material
	JP-330-N	652	352	392	120	80	24	32	18	5.2	Steel
	J-330N	702	320	176	136	80	24	32	18	5.0	Steel
	JP-330-NL	650	270	392	120	80	24	32	18	2.5	Steel

The body is aluminum or hot-dip galvanized steel.

2)	CatalogNo.	Dimensions (mm)							Weight(Kg)	Material
	CatalogNo.	L	L₁	h	∅	∅₁	C	a	Weight(Kg)	Material
	FJP-300XS	900	600	231	32	14	22	120	10.60	Steel
	FJP-300XD	700	600	275	32	18	20	18	9.60	Steel

Hot-dip galvanized steel.

3)	CatalogNo.	Dimensions (mm)								Weight(Kg)	Material
	CatalogNo.	L	L₁	L₂	h₁	h₂	C	∅	∅₁	Weight(Kg)	Material
	JP-330-X	800	270	350	145	220	18	32	18	4.2	Steel
	FJP-330-NB	800	320	380	150	392	26	32	18	4.8	Steel
	JP-330-XL800	800	270	350	145	220	18	32	18	2.1	Steel

The body is aluminum or hot-dip galvanized steel.

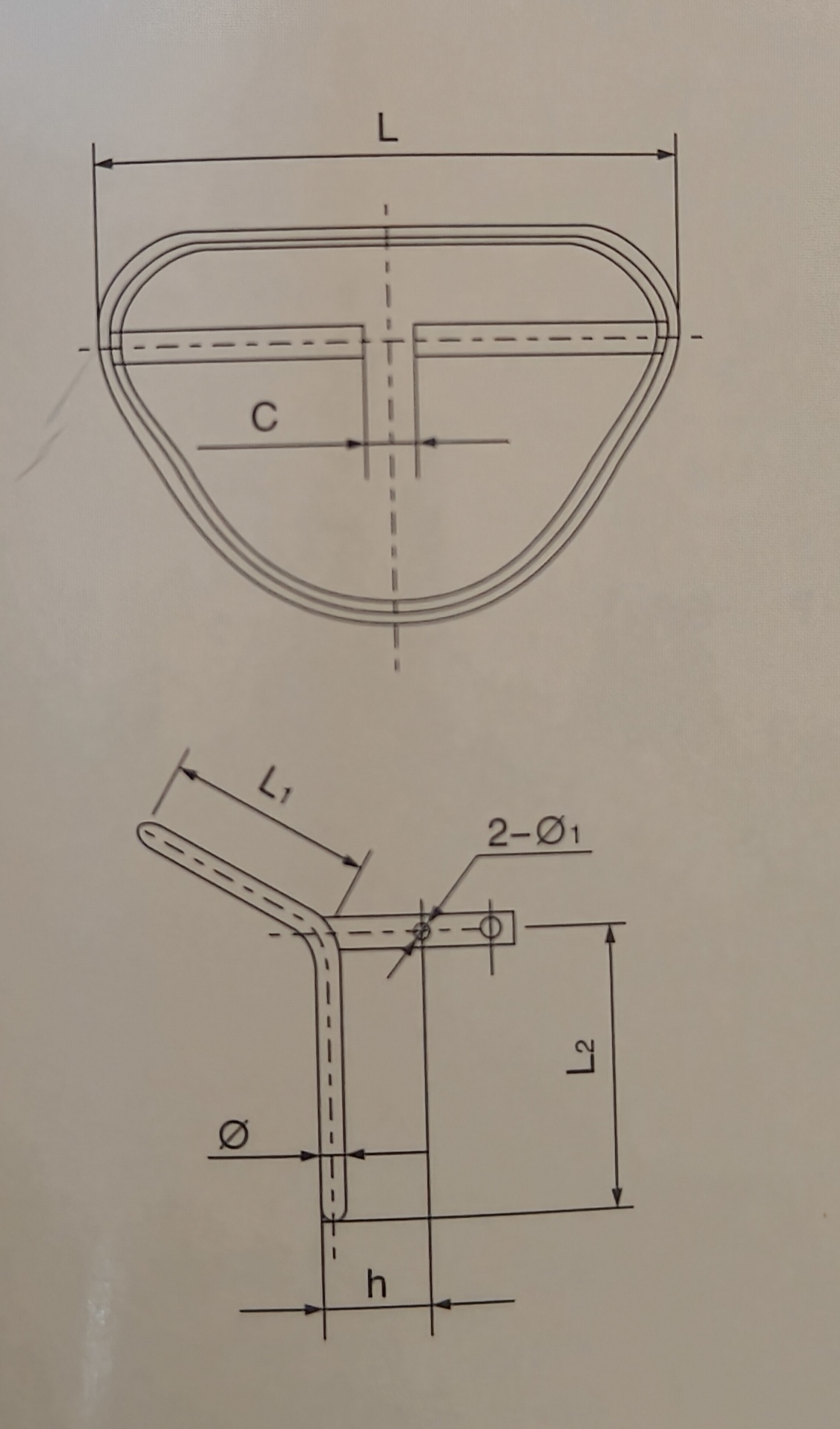

Corona Ring for 330kV Line

CatalogNo.

Dimensions (mm)

Weight(Kg)

Material

L₁

L₂

∅

∅₁

PV-330

815

300

390

130

4.8

Steel

Hot-dip galvanized steel.

5)	CatalogNo.	Dimensions (mm)									Weight(Kg)	Material
	CatalogNo.	L	L₁	L₂	L₃	h₁	h₂	C	∅	∅₁	Weight(Kg)	Material
	P-330X	800	700	280	380	143	163	18	32	18	5.48	Steel
	P-330XL	800	700	280	380	143	163	18	32	18	2.70	Steel

The body is aluminum or hot-dip galvanized steel.
