Product Description

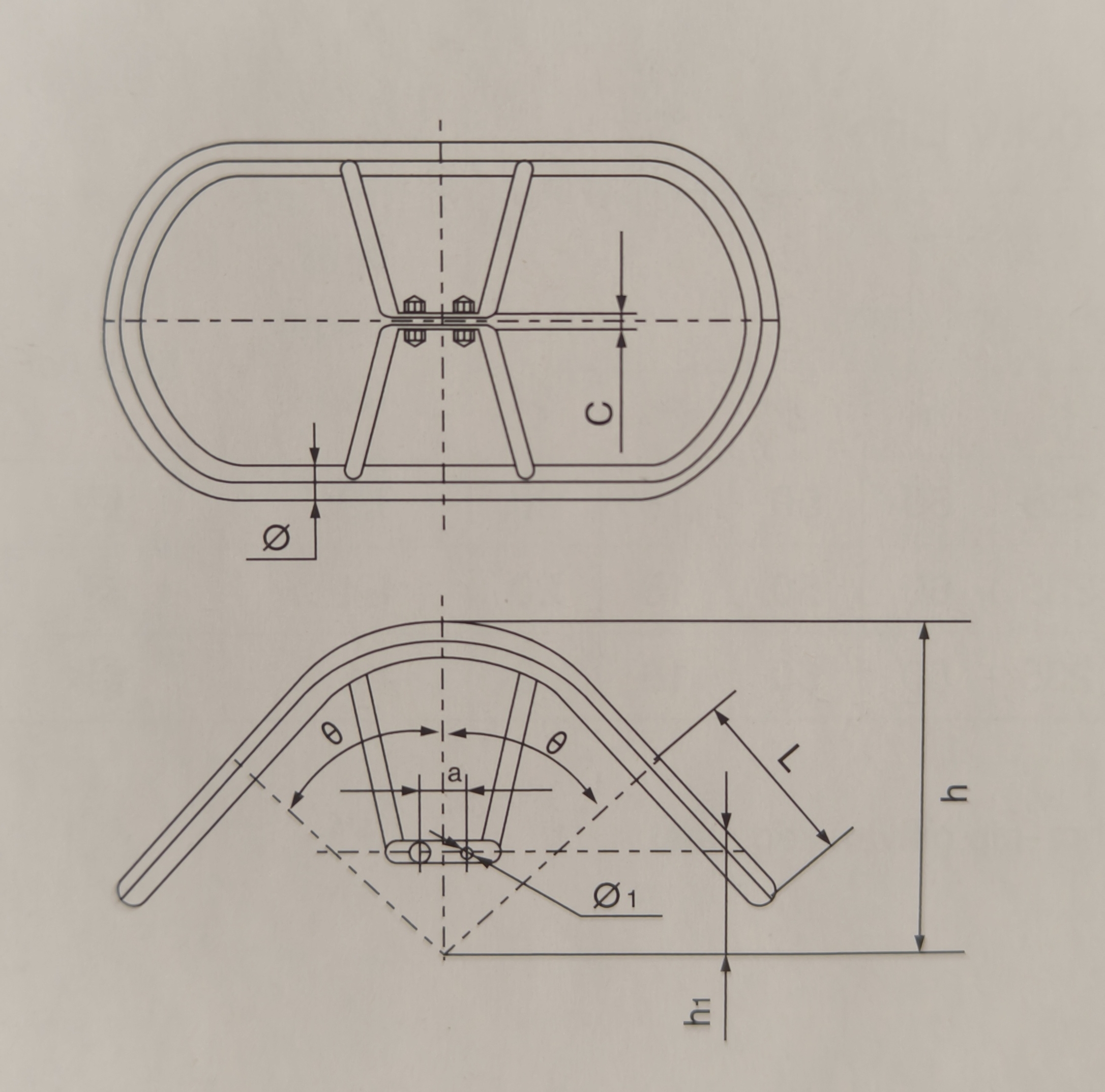

Corona Ring
 | CatalogNo. | Dimensions (mm) | Weight(Kg) | Material | ||||||
| L | L1 | h | ∅ | ∅1 | C | a | ||||
| JL-500XS | 1050 | 600 | 230 | 50 | 18 | 24 | 60 | 6.20 | Aluminum | |
| JL2-500XS | 1050 | 600 | 230 | 50 | 18 | 22 | 60 | 6.20 | Aluminum | |
| FJ-500XS/GH | 1050 | 600 | 230 | 60 | 14 | 22 | 60 | 14.30 | Steel | |
| FJ-500XS/GHE | 1150 | 600 | 270 | 60 | 18 | 24 | 60 | 6.80 | Aluminum | |
| FJP-500XSL | 1200 | 600 | 230 | 50 | 18 | 20 | 60 | 7.30 | Aluminum | |
| FJ-500XSL1 | 1200 | 600 | 230 | 50 | 18 | 22 | 60 | 7.34 | Aluminum | |
| FJ-500XSL2 | 1280 | 680 | 260 | 50 | 18 | 28 | 60 | 7.80 | Aluminum | |
| FJ-500XSL3 | 1280 | 680 | 285 | 50 | 18 | 44 | 60 | 7.96 | Aluminum | |
| FJ2-500XS/G | 1150 | 680 | 230 | 60 | 18 | 24 | 60 | 6.76 | Aluminum | |
| CatalogNo. | Dimensions (mm) | Weight(Kg) | Material | |||||||
| L | L1 | h | θ | ∅ | ∅1 | C | a | ||||
| FJP-500XV-95 | 300 | 557 | 164 | 47.5° | 80 | 20 | 60 | 18 | 6.8 | Aluminum | |
| LJ2-500XV-55 | 300 | 548 | 78 | 55° | 80 | 24 | 60 | 18 | 7.6 | Aluminum | |
| LJ2-500XV-54 | 400 | 532 | 108 | 54° | 80 | 27 | 60 | 18 | 8.2 | Aluminum | |
| LJ2-500XV-50 | 300 | 577 | 109 | 50° | 80 | 24 | 60 | 18 | 8.0 | Aluminum | |
| LJ2-500XV-45 | 300 | 608 | 145 | 45° | 80 | 24 | 60 | 18 | 7.2 | Aluminum | |
* The body is aluminu, the other parts are hot-dip galvanized steel.
