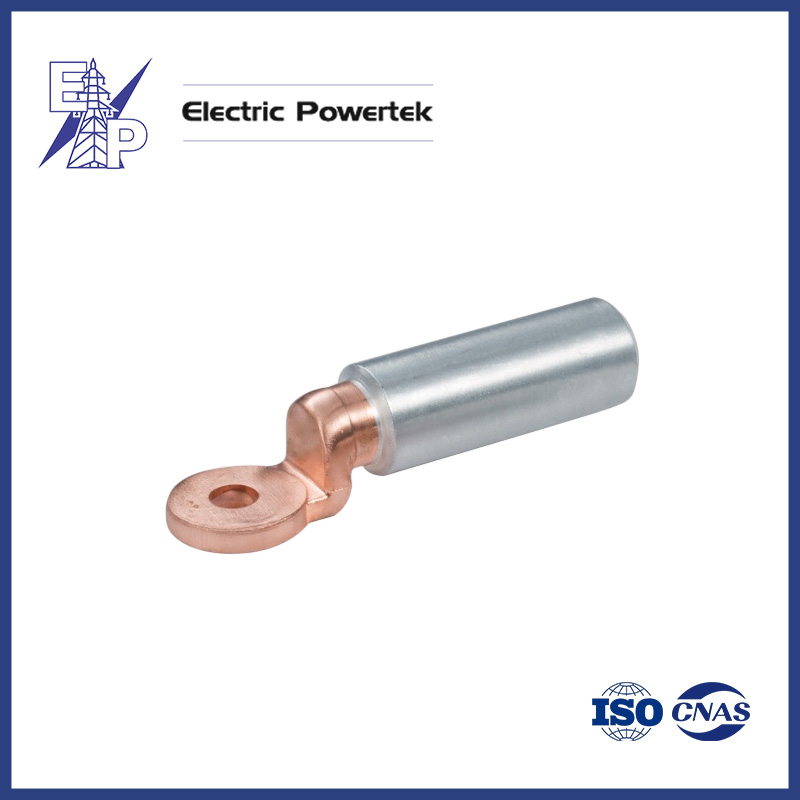

Product Description
Material: E-Cu; A1-99.6%
Surface treatment: Bright
Products property: Due to the coupling effect when Aluminium comes in contact with Copper, corrosion will happen in a short time. Currently the best solution is to use Aluminium-Copper bi-metal connectors.A bimetal lug should be used for termination. The friction welding is well done. And its barrel capped is filled with joint compound to avoid oxidization. The type is follow IEC 61238-1.
Type A（mm) | P±0.3 | D±0.5 | d±0.3 | L±3 | L1±0.3 | W±0.5 | S±0.3 |
DTL-2-16-11 | Φ11 | Φ16 | Φ6 | 80 | 40 | Φ20 | 3 |
DTL-2-25-11 | Φ11 | Φ16 | Φ7 | 80 | 40 | Φ20 | 3 |
DTL-2-35-11 | Φ11 | Φ16 | Φ8.5 | 80 | 40 | Φ20 | 3 |
DTL-2-50-13 | Φ13 | Φ20 | Φ10 | 90 | 43 | Φ25 | 4.5 |
DTL-2-70-13 | Φ13 | Φ20 | Φ11.5 | 90 | 43 | Φ25 | 4.5 |
DTL-2-95-13 | Φ13 | Φ20 | Φ13.5 | 90 | 43 | Φ25 | 4.5 |
DTL-2-120-13 | Φ13 | Φ25 | Φ15 | 115 | 59 | Φ30 | 5.5 |
DTL-2-150-13 | Φ13 | Φ25 | Φ16.5 | 115 | 59 | Φ30 | 5.5 |
DTL-2-185-13 | Φ13 | Φ32 | Φ18.5 | 122 | 60 | Φ30 | 6 |
DTL-2-240-13 | Φ13 | Φ32 | Φ21 | 122 | 60 | Φ35 | 6 |
DTL-2-300-13 | Φ13 | Φ34 | Φ23.5 | 128 | 65 | Φ35 | 6 |
DTL-2-400-17 | Φ17 | Φ40 | Φ26 | 160 | 90 | Φ36 | 6 |
DTL-2-500-17 | Φ17 | Φ40 | Φ30 | 160 | 95 | Φ36 | 6 |
DTL-2-630-17 | Φ17 | Φ47 | Φ33.5 | 205 | 95 | 60 | 10 |
Application

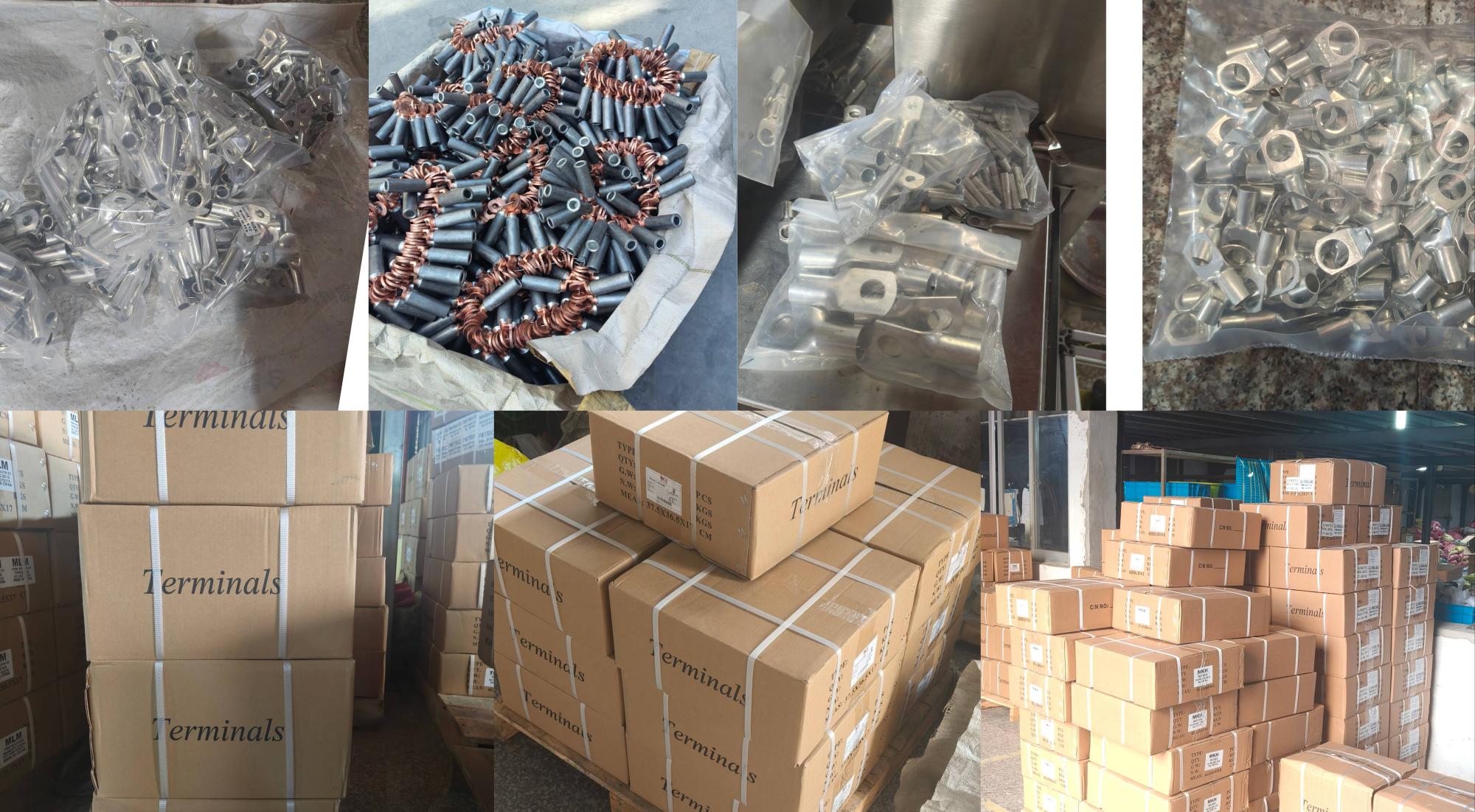

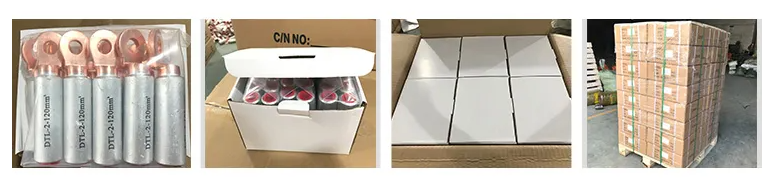

Packing&Delivery
Cooperative Client
Our cooperative client are all over the world and our products are very popular all over the world. Many products are exported to Russia, USA, Australia, Canada, South Africa, Kenya, Tanzania, Zambia, Brazil and Argentina. Chile, Southeast Asian countries and other international markets. With first-class technical ability and perfect pre-sale and after-sales service guarantee system, we have established a good reputation between enterprises and users.
