Products Description
Low Price High Tensile Hot Dipped Galvanized Steel Wire
Connecting with pole tower by splicing fittings such as thimble ,the outer stranded wires mainly bear line load.
As force transmission units,the inner stranded wires can Partially protect ADSS cable,the main functions include:
(3) Larger contact area with cable,even stress distribution ,no stress concentration point.
In the premise of less than ADSS cable side pressure, it has some grip strength, can bear a certain amount of tension.
The guy grip strength for ADSS is 100% of cable ultimate tensile strength (UTS)which completely accords with optical cable erection need.
To meet the needs of setting up ADSS cable in 10KV city network's distribution line,we produce tension clamp of 15kN grip strength, which has advantages of simple structure,easy installation and low cost. Specifications: Preformed guy grip is used in the installation of the exposed conductor also used in electric network transmission and distribution and overhead insulated conductor. The reliability and economic advantage is better than the present bolt type and hydraulic compression type Tension Set which now is being widely used in the line.The structure of the Preformed Tension Set is simple , and the pipe structure formed by the two legs of the preformed line would enlace the conductor naturely and would produce a great holding strength. The novel structure and exact design all contribute to the reliability of the conductor tension set.The set is usually made of concentric-lay-stranded Aluminium-clad steel conductors ,galvanized iron wire strands and other materials.

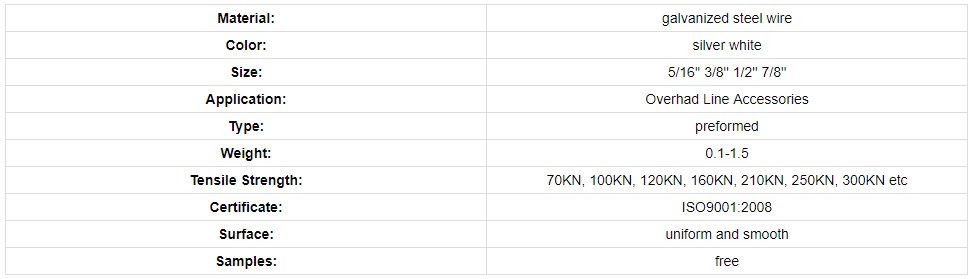

Specification
| Material: | galvanized steel wire |
| Color: | silver white |
| Size: | 5/16'' 3/8'' 1/2'' 7/8'' |
| Application: | Overhad Line Accessories |
| Type: | preformed |
| Weight: | 0.1-1.5 |
| Tensile Strength: | 70KN, 100KN, 120KN, 160KN, 210KN, 250KN, 300KN etc |
| Certificate: | ISO9001:2008 |
| Surface: | uniform and smooth |
| Samples: | free |
Packing&Delivery

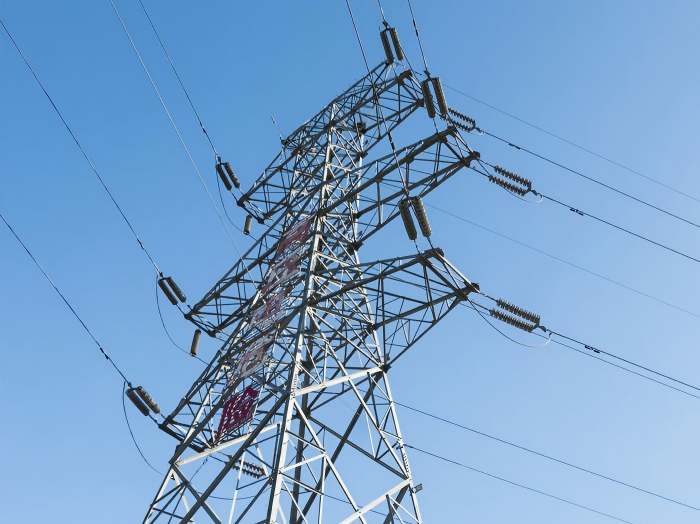

Product Case
